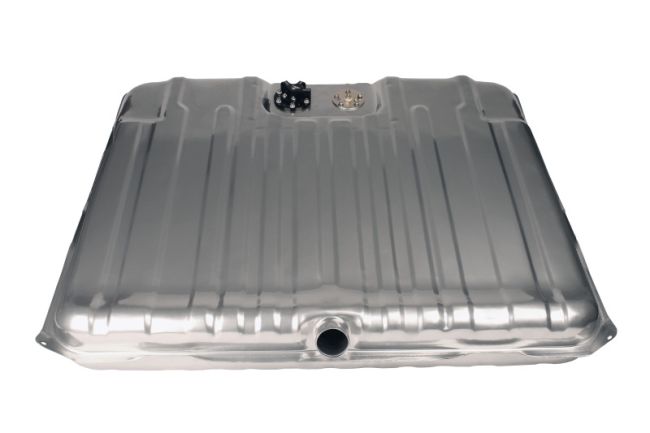

Aeromotive Pontiac GTO 6.4L, 6.6L (65-67) & Lemans 3.8L, 5.3L (66-67) Gen I Stealth Fuel Tank with 340-lph Fuel Pump

P/N 18321: 65-67 Pontiac GTO & 66-67 LeMans Stealth Fuel Tank

With Stealth 340 pump and 0-90 ohm sending unit.

Perfect for EFI and carbureted engines

OEM appearance and 25-gallon capacity

Durable, powder-coat silver exterior finish

High flow, quiet 340 Stealth in-tank fuel pump

Wide, lateral internal surge baffle

Large, EFI friendly fuel pump reservoir

0-90 Ohm fuel level sending unit

Billet hat with ORB-06 outlet, return and vent ports

Fully assembled out of the box, ready to install

1” Deeper than stock tank, mounting straps included

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Series Stealth

Capacity 25 Gallons

Baffled Yes

Material Steel

Universal Or Specific Fit Specific

Color Silver

Filler Neck Attached Yes

Filler Neck Length 8 Inches

Fuel Type Gas

Grade Type Performance

Mounting Hardware Included No

Mounting Straps Included Yes

Sender Ohm Range 0-90

Sending Unit Included Yes

Fuel Pump Included Yes

Maximum Flow Rating 340LPH

Maximum Pressure 105 PSI

Pump Design Turbine Impeller

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Outlet Type Female

Outlet Outside Diameter ORB-06

Return Fitting Size ORB-06

Maximum Current Draw 13A @ 40PSI

Voltage 12-16V

Negative Ground Yes

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud
