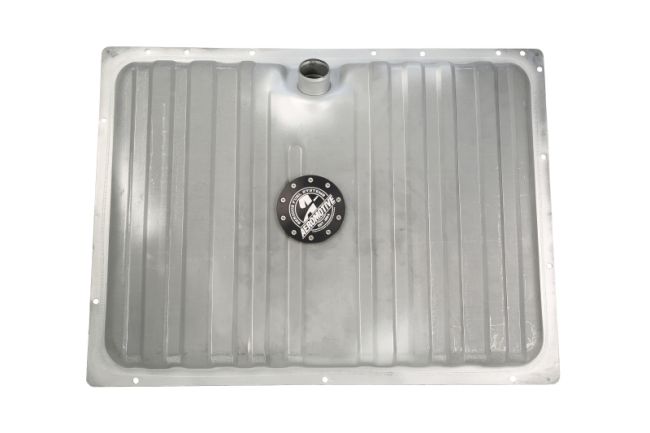

Aeromotive Ford Mustang (64-68) Gen II Stealth Fuel Tank with 340-lph Fuel Pump

P/N 18497 - 340lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines:

Gasoline: up to 850 HP – naturally aspirated.

Gasoline: up to 700 HP – forced air induction.

E85: up to 595 HP – naturally aspirated.

E85: up to 490 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1000 HP – naturally aspirated.

Gasoline: up to 850 HP – forced air induction.

E85: up to 700 HP – naturally aspirated.

E85: up to 595 HP – forced air induction.

Series Gen II Stealth

Capacity 16 Gallons

Baffled Yes

Material Steel

Universal Or Specific Fit Specific

Color Silver

Filler Neck Attached Yes

Width 22 Inches

Fuel Type Gas

Grade Type Performance

Height 10 Inches

Length 41 Inches

Mounting Hardware Included No

Mounting Straps Included No

Sender Ohm Range 73-10

Sending Unit Included Yes

Fuel Pump Included Yes

Maximum Flow Rating 340LPH

Maximum Pressure 105 PSI

Pump Design Turbine Impeller

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Outlet Type Female

Outlet Outside Diameter ORB-06

Return Fitting Size ORB-06

Maximum Current Draw 13A @ 40PSI

Voltage 12-16V

Negative Ground Yes

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud
