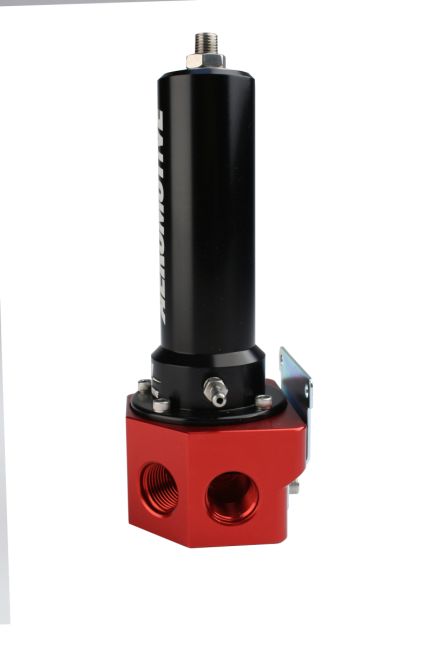

Aeromotive Belt Drive Pump EFI Regulator

Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol.

Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure.

Base pressure adjustable from 40-100 PSI.

References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Ports available for nitrous fuel supply, pressure gauges and transducers.

(4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port.

Pressure Range 40-100 PSI

Adjustable Yes

Minimum Pressure 40 PSI

Maximum Pressure 100 PSI

Mounting Bracket Included Yes

Port Quantity 5

Inlet Port Diameter ORB-10

Inlet Gender Female

Gauge Included No

Color Black/Red

Grade Type Performance
