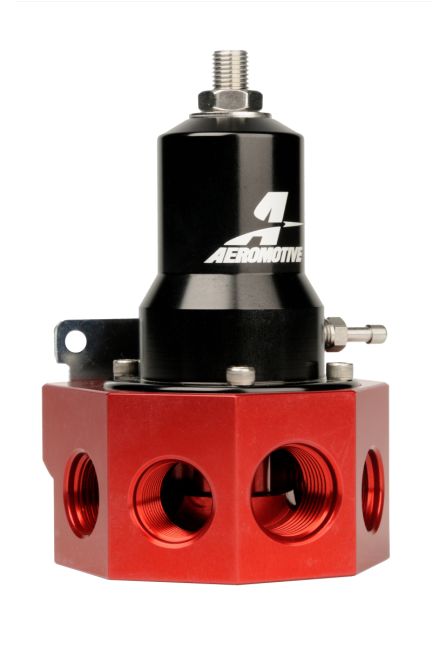

Aeromotive Regulator - 30-120 PSI - .500 Valve - 4x AN-08 and AN-10 inlets / AN-10 Bypass

Extreme Flow EFI Regulator

Designed for use with Belt or Hex Drive Fuel Pumps.

Expanded, 5-Port Body with 1 - AN-10 plus 4 – AN-08 inlet/outlet ports, and one AN-10 return port.

0.500” High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pumps

Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.

Standard spring (installed) supports 30-75 PSI base fuel pressure.

High Pressure spring (included) supports 75-120 PSI base fuel pressure.

Supports vacuum and boost reference on a 1:1 ratio with PSI

This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.

Pressure Range 30-120 PSI

Adjustable Yes

Minimum Pressure 30 PSI

Maximum Pressure 120 PSI

Mounting Bracket Included Yes

Port Quantity 5

Inlet Port Diameter ORB-10

Inlet Gender Female

Gauge Included No

Color Black/Red

Grade Type Performance
