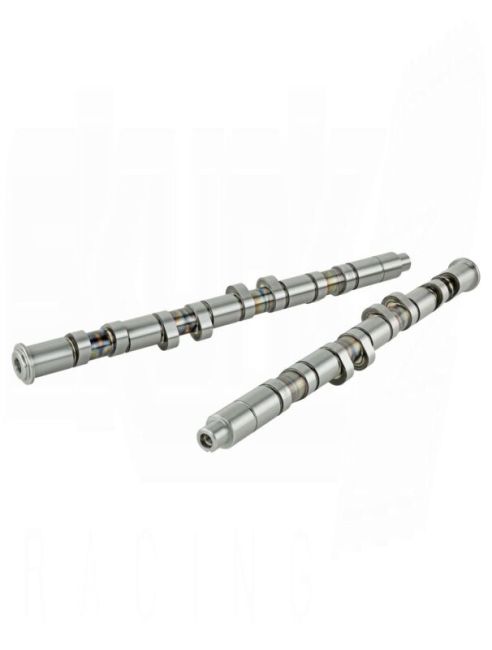

Skunk2 Honda B-Series Applications - Ultra BMF TLRC Stage 2 Camshafts - B Series

The Skunk Ultra BMF TLRC Camshaft System for B-Series engines is a roller valvetrain and camshaft combination that represents the latest evolution in B-Series Valvetrain and Camshaft design, and IS the ‘missing link’ required to achieve levels of engine efficiency and performance never before possible. At the core of system are lightweight steel roller rockers and billet steel camshafts with CNC precision ground advanced lobe profiles. Skunk2 Ultra BMF roller camshaft profiles open and close the valves much quicker than what is possible with an OE sliding style valvetrain, which is key to improving power and efficiency. Additionally, the Skunk2 Ultra BMF TLRC was designed to be stable at 12,000rpm.  A stable high RPM capable valvetrain combined with improved efficiency opens up a new realm of performance not previously possible.

The Skunk2 Ultra BMF TLRC System is a requirement for any serious B-Series engine builder or racer looking to compete at the next level and can be used on both forced induction and naturally aspirated engines.

Results will obviously vary from set-up to set-up, but the real world feedback we commonly receive include: increases of +100hp, a broader power band that carries higher, a dramatically improved VE table, +5mph at the 1/8th track, the ability to utilize larger exhaust housings and turbines. Racers who currently use the Skunk2 Ultra BMF TLRC System have all been completely shocked by the massive gains in engine efficiency and vehicle performance.

FEATURES:

Lightweight Steel Roller Rockers

Billet 8660 Alloy Steel Camshafts

Advanced BMF Roller Profiles

Higher Efficiency With Wider Power Band

12,000 RPM Capable

RECOMMENDATIONS:

Ultra BMF TLRC Rocker Set B Series - PN 348-05-0200

CAM SPECS:

Intake Camshaft

Lobe: Primary

Lift: 13.71mm / 0.540"

Duration: 271° @1mm

Exhaust Camshaft

Lobe: Primary

Lift: 13.08mm / 0.515"

Duration: 272° @1mm

NOTE: 12,000 rpm spintron validation was done using the S2 ProXP springs,  Skunk spring bases, and Skunk2 Titanium Retainers. Other combinations maybe be used, but results may vary.

Fits
Honda B16A/B
Honda B17A
Honda B18C
