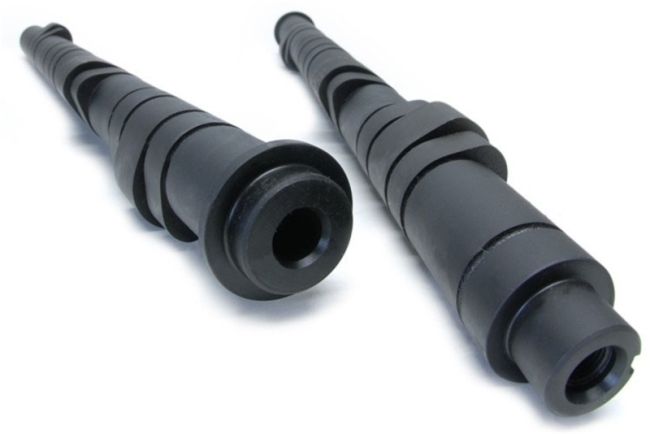

Skunk2 Honda H22 And F20B VTEC Applications - Tuner Stage 2 Camshaft - H VTEC

Gain an extra 15-20 hp and retain your factory idle and low-speed emissions with Skunk2’s Tuner Series Stage 2 Camshafts, our introductory line of high-performance camshafts for Honda’s H22/ F20B VTEC engines. Tuner Series Stage 2 Camshafts are designed to optimize horsepower and torque on mildly modified engines. As a result, VTEC crossover is dramatic, allowing for that classic primary-to-secondary surge. What’s more, Tuner Series Stage 2 Camshafts are based off of profiles we used on Honda Prelude Pace Cars that were then modified for street use. No other line of high-performance camshafts even comes close to Skunk2’s Tuner Series.

Requirements:

Alpha Series Springs and Retainers Kit (P/N 344-05-1360)

Alpha Ti Retainers (P/N 308-05-1300)

Alpha Valve Springs (P/N 311-05-1360)

Recommendations:

Pro Series Cam Gears (P/N 304-05-5225 Silver / 304-05-5220 Black)

Engine Management

Cam Specs:

Intake Duration: Lift: 267° / 12.8mm

Exhaust Duration: Lift: 274° / 11.9mm

Intake Centerline: 100°

Exhaust Centerline: 105°

Valve Clearance (Intake / Exhaust): .007” / .008”

RPM Range: 1,500 - 9,000 rpm

HP Gains: 15 - 20 hp

Torque Gains: 16 - 20 lb-ft

Fits
Honda F20B
Honda H22A
