Skunk2 Honda B18A, B18B, B20A And B20Z Applications - Alpha Connecting Rods - B18A/B20B

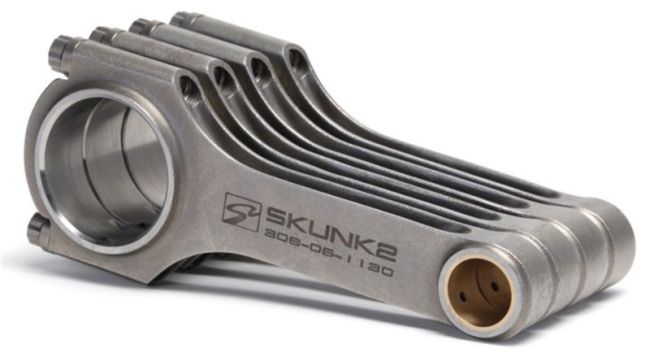

Skunk2's Alpha Series Connecting Rods for Honda B18A, B18B, B20A, and B20Z engines are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

Forged Aircraft Grade 4340 Chromoly Steel

Wide H-Beam Design for Added Strength

High Strength 220,000psi ARP2000 Bolts Included

Set of 4

Not compatible with OEM pistons.

Connecting Rods Specs:

Beam Type: H-Beam

Weight: 519 grams

Material: Forged 4340 Chromoly Steel

SE (Small End) Diameter: 21mm / 0.827"

SE (Small End) Width: 20.6mm / 0.810

Center to Center: 137.1mm / 5.397"

Rod Bolt: 3/8" ARP 2000

BE (Big End) Width: 23.6mm / 0.930"

BE (Big End) Bord: 48mm / 1.890"

Reciprocating Weight:121 grams

Rotating Weight: 398 grams

Not compatible with OEM pistons.

Fits
Honda B18A/B
Honda B20A
Honda B20Z
