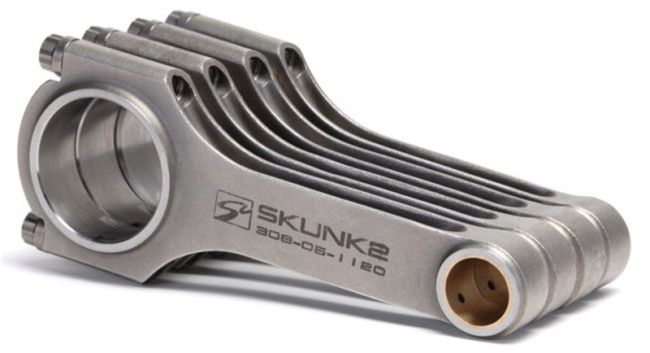

Skunk2 Honda B18C And B18C5 Applications - Alpha Connecting Rods - B18C/B18C5

Skunk2s Alpha Series Connecting Rods for Honda B18C/B18C5 are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

Forged Aircraft Grade 4340 Chromoly Steel

Wide H-Beam Design for Added Strength

High Strength 220,000psi ARP2000 bolts Included

Set of 4

Not compatible with OEM pistons.

Connecting Rods Specs:

Beam Type: H-Beam

Weight: 515 grams

Material: Forged 4340 Chromoly Steel

SE (Small End) Diameter: 21mm / 0.827"

SE (Small End) Width: 20.6 mm / 0.810"

Center to Center: 137.9 mm / 5.430"

Rod Bolt: 3/8" ARP 2000

BE (Big End) Width: 22mm / 0.853"

BE (Big End) Bord: 48mm / 1.890"

Reciprocating Weight: 118 grams

Rotating Weight: 395 grams

Not compatible with OEM pistons.

Fits
Honda B18C
