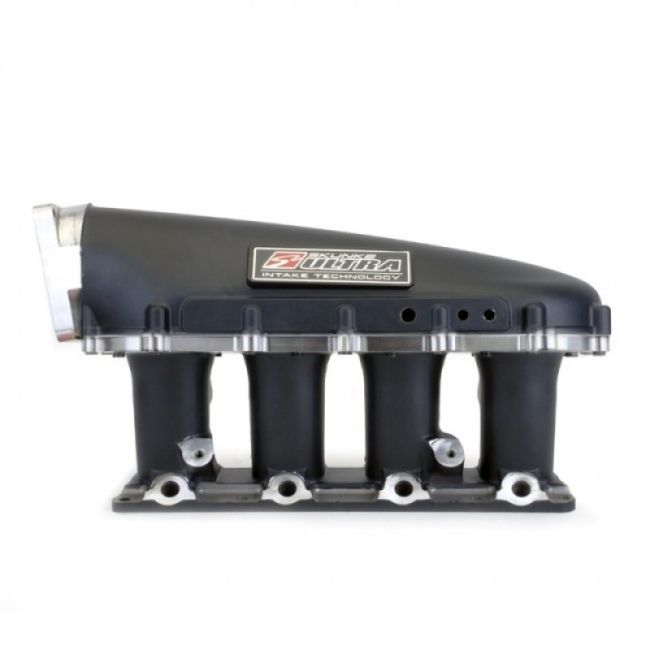

Skunk2 Honda Civic Si (02–05), Acura RSX/RSX Type S (02–06), Honda K20A, K20A2, K20Z1 And K24A1 Applications - Ultra Race Intake Manifold - K20A2 Style - All Black

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the '02-'05 Civic Si and '02-'06 RSX/ RSX Type S, and/ or any swap using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads has finally arrived! The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold.

Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors. Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes

**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes US Patent: D677700

Features:

Modular 3pc. Design w/ Removable Plenum

3.5L Plenum Volume**

90mm Throttle Body Flange - Std. 5.0L Ford Pattern

6.0" Tapered Hi-Velocity Runners

Raised 87mm Velocity Stacks

Generously Cast Runner Walls for Porting

Provisions Secondary Fuel Rail & Injectors

4 x 1/8" NPT, 3 x 1/4" NPT, and 1 x 3/8" NPT Accessory Ports

Hi-Grade Mounting Hardware

Thermal Gasket Included

The K Series Ultra Race Manifold uses the EARLY PRB/ PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/ RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated throttle body or throttle body adapter.

RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE

3.5 Liter > High Horsepower N/A and Forced Induction Applications to 600HP

4.5 Liter > 600-1000HP

5.5 Liter > 1,000HP Up

Optional Billet Aluminum Plenum Spacer Available:

Ultra Race Plenum Spacer Silver - 1L (P/N 907-05-9001)

Ultra Race Plenum Spacer Black - 1L (P/N 907-05-9051)

Ultra Race Plenum Spacer Silver - 2L (P/N 907-05-9002)

Ultra Race Plenum Spacer Black - 2L (P/N 907-05-9052)

***Modification required on vehicles using OEM Idler Pulley & Water Pump Housing***

Recommendations:

Fuel Rail:

Ultra Street Fuel Rail - (P/N 350-05-7000)

Throttle Bodies:

Pro Throttle Body 90mm Silver - (P/N 309-05-0900)

Pro Throttle Body 90mm Black - (P/N 309-05-0905)

Sensors:

TPS Sensor - (P/N 352-05-1410)

Map Sensor 3 Bar - (P/N 352-05-1515)

Map Sensor 4 Bar - (P/N 352-05-1500)

Adapters:

PRB Throttle Body into Ultra Manifold - (P/N 309-05-0025)

RBC Throttle Body into Ultra Manifold - (P/N 309-05-0010)

TPS Adapter K to B - (P/N 309-05-0100)

Thermal Gaskets:

Intake Manifold Gasket (PRB) - (P/N 372-05-0350)

Throttle Body Gasket Pro 90mm - (P/N 372-99-0090)

US Patent: D677700

Fits
Honda K20A2
