Skunk2 Honda D-Series VTEC Applications - Ultra Race Intake Manifold - D VTEC

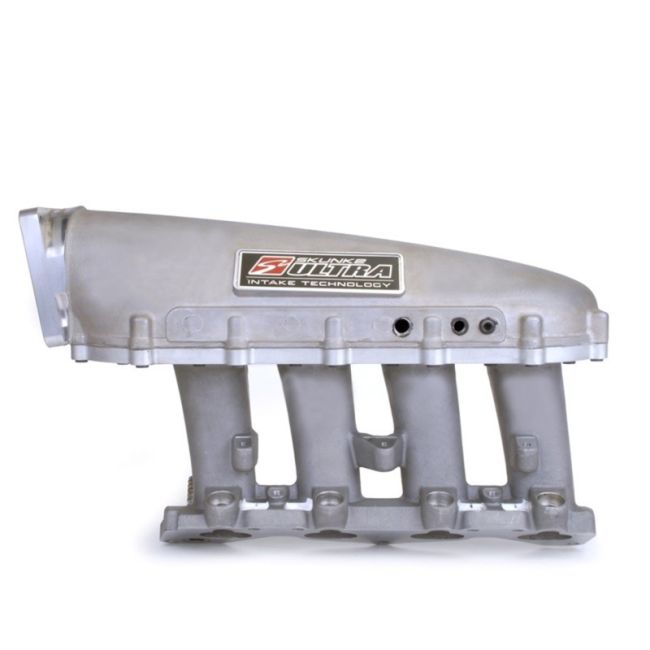

The Skunk2 Ultra Race Intake Manifold engineered for D Series Vtech engines is cast as a two-piece manifold from aircraft grade A356 aluminum, and features provisions to mount secondary injectors underneath. The modular design means the plenum volume can easily be increased using simple spacers, and the runners can be freely ported for additional flow and volume. The versatility of this manifold allows enthusiasts and engine builders to tune the manifold combination to best suit their needs.

Recommended for high-performance naturally aspirated engines up to 450hp, and turbo/supercharged engines from 650hp and up.

Each manifold is vacuum tested, black wrinkle powder coated and finished-off with our Signature Skunk2 Pro-Series nameplate.

Features:

Lightweight 356 Aluminum Alloy Construction

Modular Design with Removable Plenum

3.5L Plenum Volume

90mm Throttle Body Flange - Std. 5.0L Ford Pattern

Tapered 6.7" High-Velocity Runners w/ Raised 81mm Velocity Stack Entries

Generously Cast Runner Walls for Porting

Provisions Secondary Fuel Rail & Injectors

4 x 1/8” NPT, 3 x 1/4” NPT, and 1 x OEM AIT Port

Hi-Grade Mounting Hardware

Gasket Included

**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes

RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE

3.5 Liter > High Horsepower N/A and Forced Induction Applications to 600HP

4.5 Liter > 600-1000HP

Optional Billet Aluminum Plenum Spacer Available:

Ultra Race Plenum Spacer Silver - 1L (P/N 907-05-9001)

Ultra Race Plenum Spacer Black - 1L (P/N 907-05-9051)

Ultra Race Plenum Spacer Silver - 2L (P/N 907-05-9002)

Ultra Race Plenum Spacer Black - 2L (P/N 907-05-9052)

Recommendations:

Throttle Bodies:

Pro Throttle Body 90mm Silver - (P/N 309-05-0900)

Pro Throttle Body 90mm Black - (P/N 309-05-0905)

Sensors:

TPS Sensor - (P/N 352-05-1400)

Map Sensor 2.5 Bar - (P/N 352-05-1525)

Map Sensor 4 Bar - (P/N 352-05-1510)

Thermal Gaskets:

Intake Manifold Gasket - (P/N 372-05-0275)

Throttle Body Gasket Pro 90mm - (P/N 372-99-0090)

Fits
Honda D15B
Honda D15Y
Honda D16Y
Honda D16Z
