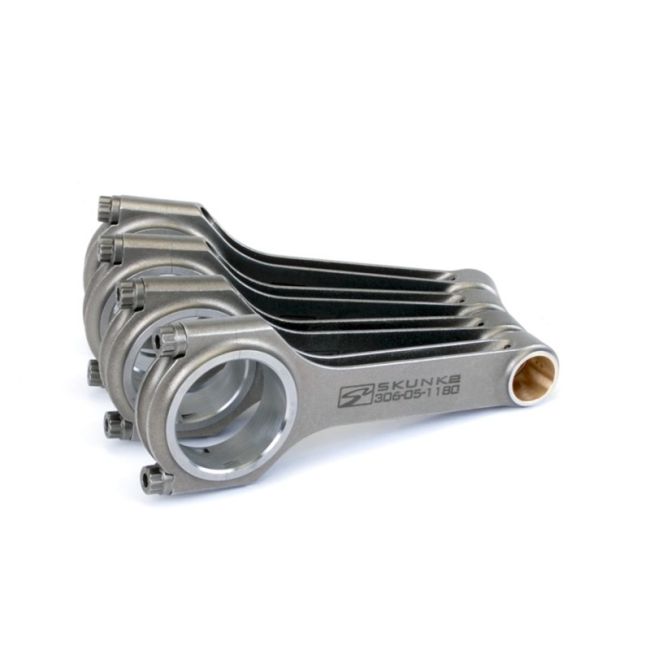

Skunk2 Honda S2000 F20C Applications - Alpha Connecting Rods - F20C

Skunk2s Alpha Series Connecting Rods for Honda S2000 F20C engines are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

Forged Aircraft Grade 4340 Chromoly Steel

Wide H-Beam Design for Added Strength

High Strength 220,000psi ARP2000 Bolts Included

Set of 4

Not compatible with OEM pistons.

Connecting Rods Specs:

Beam Type: H-Beam

Weight: 546 grams

Material: Forged 4340 Chromoly Steel

SE (Small End) Diameter: 23mm / 0.907"

SE (Small End) Width: 21.9mm / 0.861"

Center to Center: 153mm / 6.022"

Rod Bolt: 3/8" ARP 2000

BE (Big End) Width: 23.7mm / 0.932"

BE (Big End) Bord: 51mm / 2.008"

Reciprocating Weight: 131 grams

Rotating Weight: 414 grams

Not compatible with OEM pistons.

Fits
Honda F20C
