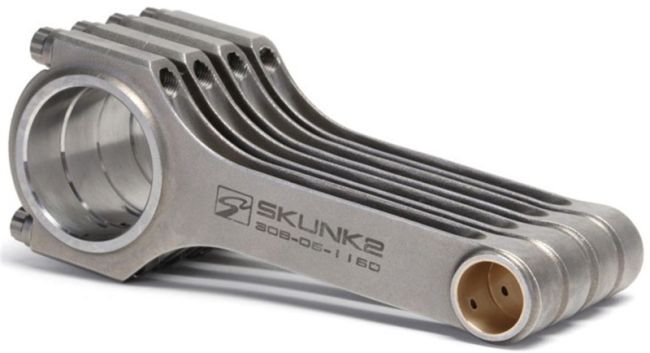

Skunk2 Honda K24A1, K24A2, K24A4, K24A8 And K24Z Applications - Alpha Connecting Rods - K24

Skunk2s Alpha Series Connecting Rods for the Honda K24A1, K24A2, K24A4, K24A8 and K24Z engines are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

Forged Aircraft Grade 4340 Chromoly Steel

Wide H-Beam Design for Added Strength

High Strength 220,000psi ARP2000 Bolts Included

Set of 4

Not compatible with OEM pistons.

Connecting Rods Specs:

Beam Type: H-Beam

Weight: 508 grams

Material: Forged 4340 Chromoly Steel

SE (Small End) Diameter: 22mm / 0.868"

SE (Small End) Width: 19.8mm / 0.780"

Center to Center: 152mm / 5.984"

Rod Bolt: 3/8" ARP 2000

BE (Big End) Width: 19.7mm / 0.777"

BE (Big End) Bord: 51mm / 2.008"

Reciprocating Weight: 126 grams

Rotating Weight: 382 grams

Not compatible with OEM pistons.

Fits
Honda K24
Honda K24A
Honda K24Z
