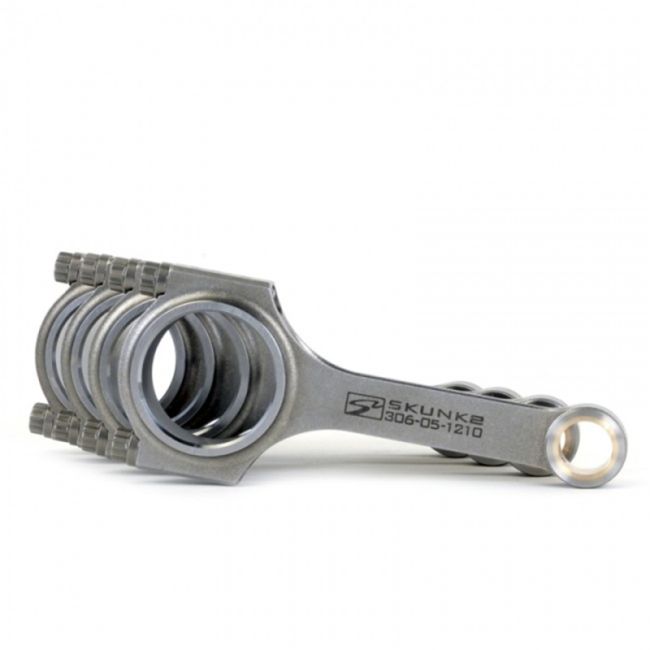

Skunk2 Honda SOHC D16A And ZC Applications - Alpha Connecting Rods - D16A/ZC - Lite

Skunk2s Alpha Series Connecting Rod for Hondas SOHC D16A and ZC engines (Lite Spec) are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

Forged Aircraft Grade 4340 Chromoly Steel

Wide H-Beam Design for Added Strength

High Strength 220,000psi ARP2000 Bolts Included

Set of 4

Not compatible with OEM pistons.

Connecting Rods Specs:

Beam Type: H-Beam

Weight: 458 grams

Material: Forged 4340 Chromoly Steel

SE (Small End) Diameter: 19mm / 0.750"

SE (Small End) Width: 18mm / 0.713"

Center to Center: 137mm / 5.389"

Rod Bolt: 3/8" ARP 2000

BE (Big End) Width: 22.6mm / 0.889"

BE (Big End) Bord: 48mm / 1.891"

Reciprocating Weight:102 grams

Rotating Weight: 356 grams

Modification to the Girdle and or Block is Necessary

Not compatible with OEM style pistons.

Small-End Compatible w/ MOST Aftermarket Pistons w/out Machining

Fits
Honda CR-X 1988 - 1991
Honda Civic 1988 - 2000
Honda D16A
Honda Del Sol 1993 - 1997
Honda ZC
