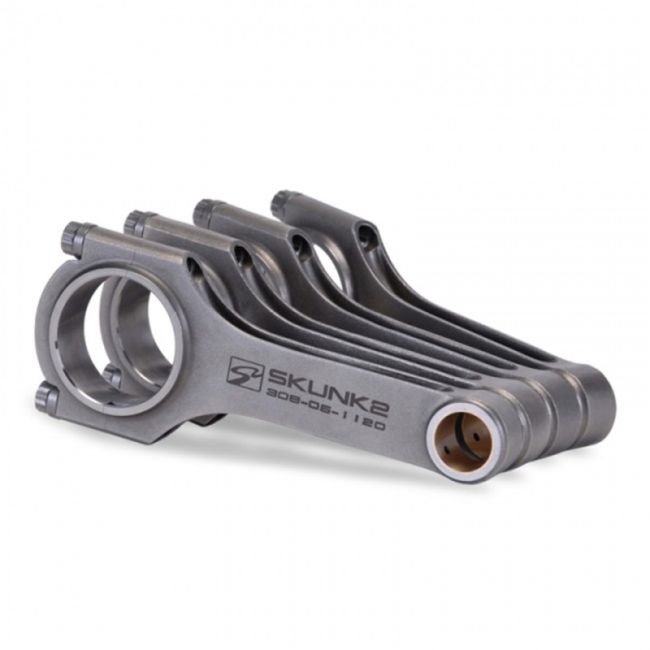

Skunk2 Honda SOHC D16A And ZC Applications - Alpha Connecting Rods - D16A/ZC - Vitara Spec

Skunk2s Alpha Series Connecting Rods for Honda SOHC D16A and ZC engines (Vitara Spec) are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

Forged Aircraft Grade 4340 Chromoly Steel

Wide H-Beam Design for Added Strength

High Strength 220,000psi ARP2000 Bolts Included

Set of 4

Not compatible with OEM pistons.

Connecting Rods Specs:

Beam Type: H-Beam

Weight: 457 grams

Material: Forged 4340 Chromoly Steel

SE (Small End) Diameter: 19mm / 0.749"

SE (Small End) Width: 18.19mm / 0.716"

Center to Center: 138.63mm / 5.458"

Rod Bolt: 3/8" ARP 2000

BE (Big End) Width: 22.6mm / 0.891"

BE (Big End) Bord: 48mm / 1.890"

Reciprocating Weight: 102 grams

Rotating Weight: 354 grams

**Piston may require minor shaving depending on brand and design

Not compatible with OEM pistons.

Fits
Honda D16A
Honda ZC
