Skunk2 Scion, Subaru And Toyota FA20 Applications - Alpha Connecting Rods - FA20

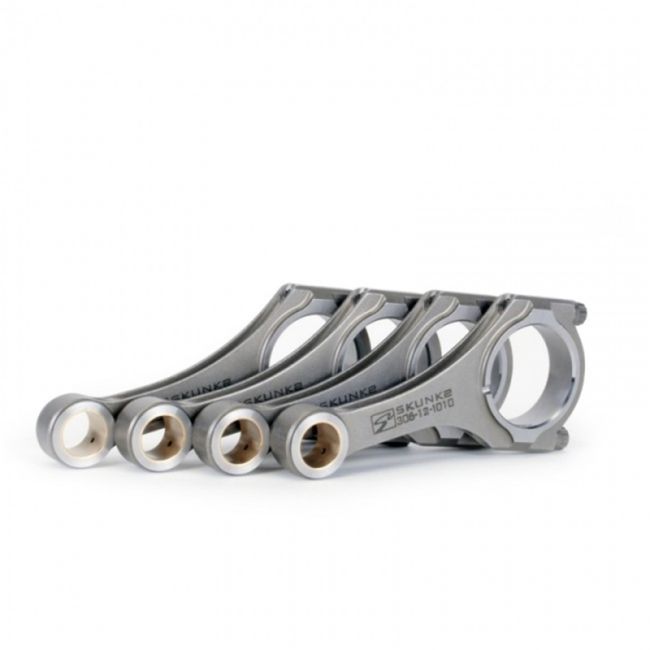

Skunk2s Alpha Series Connecting Rods for the Scion, Subaru and Toyota FA20 are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

Forged Aircraft Grade 4340 Chromoly Steel

Wide H-Beam Design for Added Strength

High Strength 220,000psi ARP2000 Bolts Included

Set of 4

Not compatible with OEM pistons.

Connecting Rods Specs:

Beam Type: H Beam

Weight: 527 grams

Material: Forged 4340 Chromoly Steel

SE (Small End) Diameter: 22mm / 0.866"

SE (Small End) Width: 21mm / 0.843"

Center to Center: 129.39mm / 5.094"

Rod Bolt: 3/8" ARP 2000

BE (Big End) Width: 21mm / 0.843"

BE (Big End) Bore: 53mm / 2.086"

Reciprocating Weight: 125 grams

Rotating Weight: 394 grams

Not compatible with OEM pistons.

Fits
Scion FA20
Scion FR-S 2013 - 2016
Subaru BRZ 2013 - 2019
Subaru FA20
Subaru Forester 2014 - 2018
Subaru WRX 2015 - 2020
Toyota 86 2017 - 2019
Toyota FA20
