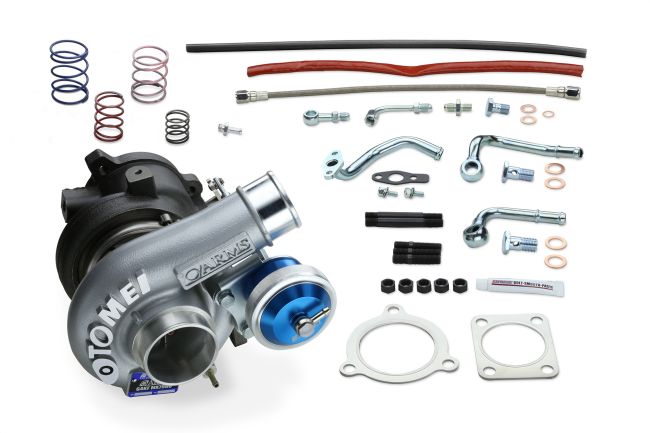

Tomei Hyundai Genesis Coupe 2.0T (08-16) G4KF MX7960 Journal Bearing Turbocharger with Billet Actuator

Introducing the Tomei Arms Mx8265 Turbocharger, a pinnacle of engineering excellence tailored for the discerning owner of the Hyundai Genesis Coupe 2.0T (2008-2016). This turbocharger is not merely an upgrade; it represents a profound evolution of Tomei's original M-Series design, integrating advanced technology and meticulous craftsmanship to deliver peak performance and reliability.

Design & Engineering
The Mx8265 Turbocharger is engineered with precision, featuring a lightweight billet compressor wheel that is machined from aerospace-grade materials. This innovative design reduces unsprung mass while enhancing turbo responsiveness. The compressor wheels thinner blades and larger surface area facilitate superior airflow dynamics, ensuring rapid spool-up and sustained power delivery across the rev range.

Multi-Range Billet Actuator
At the heart of the Mx8265 is a robust multi-rate billet actuator, forged from high-strength materials to withstand the rigors of performance driving. This actuator includes six interchangeable springs, allowing for fine-tuning of boost levels to meet the specific demands of your driving style. The swivel-type nipple design provides unparalleled flexibility in hose routing, ensuring a clean and efficient installation.

Technical Specifications
Model: Hyundai G4KF
Compressor Wheel:
(A) IND (mm): 52
(B) ExD (mm): 68
Trim: 6
Material: A261
Production: CNC Billet
Turbine Wheel:
(C) ExD (mm): 54
(D) IND (mm): 61
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
IND (mm): 55
ExD (mm): 41.7
Turbine Housing:
IND: 52
ExD: 66
A/R: 0.57
Initial Boost Setting: 1.0 kgf/cm2

Fitment
Hyundai Genesis Coupe 2.0T (2008-2016)
