Tomei Toyota Chaser (JZX100) & Mark 2 (JZX100) (96-01) 1JZ-GTE BX8280 Ball Bearing Turbocharger with Billet Actuator

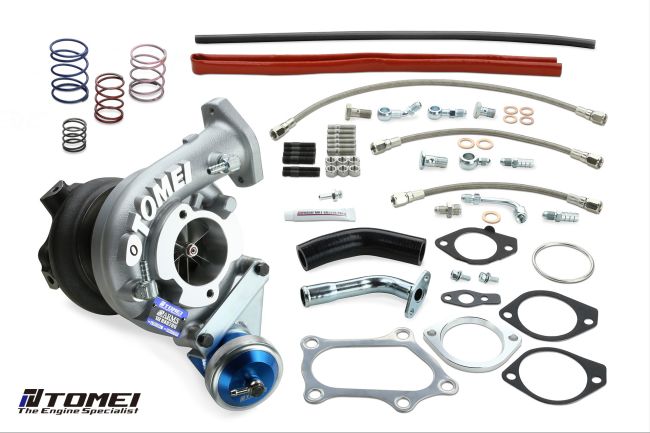

The Tomei TB403A-TY04A turbocharger is engineered for serious performance, featuring a multi-range billet actuator and a high-performance compressor wheel designed for the Toyota 1JZ-GTE engine. This turbocharger is a solid choice for those looking to enhance their vehicle's power output and efficiency.

Multi-Range Billet Actuator
This turbocharger utilizes a large capacity multi-rate billet actuator constructed from reinforced forged billet material. It comes equipped with six springs, allowing for precise boost adjustments. Users can combine up to three springs to tailor the setup to their specific performance needs. The swivel type nipple enhances flexibility when routing hoses, ensuring a clean installation.

Billet Compressor Wheel
The TB403A-TY04A features a newly designed billet compressor wheel that significantly outperforms traditional cast compressor wheels. Machined from aerospace-grade materials, this lightweight component boasts thinner blades and a larger surface area, resulting in improved airflow and quicker turbo spool times.

Specifications
Model: Toyota 1JZ-GTE
Target Horsepower: 450 HP
Bearing Type: Ball Bearing
Initial Boost Setting: 1.0 Kgf/cm
Compressor Wheel:
Inducer Diameter: 61 mm
Exducer Diameter: 82 mm
Trim: 5
Blades: 6
Material: A261
Production: CNC Billet
Turbine Wheel:
Exducer Diameter: 58 mm
Inducer Diameter: 67 mm
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
Inducer Diameter: 62 mm
Exducer Diameter: 45.4 mm
A/R: 0.54
Turbine Housing:
Inducer Diameter: 47.8 mm
Exducer Diameter: 1J
A/R: 0.67

Fitment
Toyota Chaser 100 (1996-2001)
Toyota Mark II 100 (1968-2004)
Notes
Images are for marketing purposes only; the actual product may vary.
