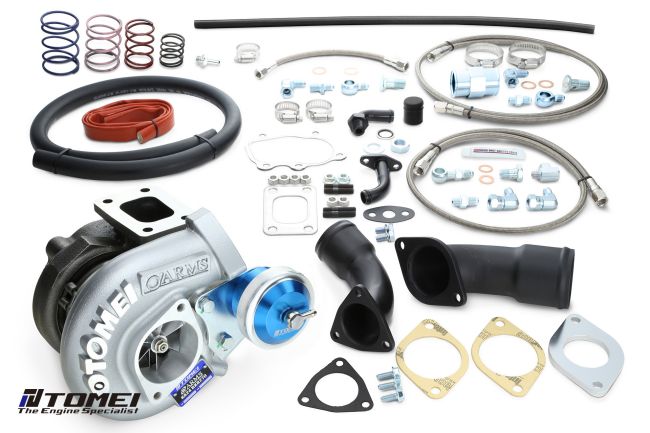

Tomei Nissan Silvia S13 & S14 (240SX) (89-98) KA24DE Ball Bearing BX7960 Turbocharger Kit with Billet Actuator

The Multi Range Billet Actuator for the Nissan KA24DE is engineered for precision and performance. Constructed from reinforced forged billet material, this actuator is built to withstand the rigors of high-performance driving. With a total of six springs included, you can easily fine-tune your boost levels combining up to three springs at a time to achieve the ideal setup for your driving style. The swivel-type nipple enhances hose routing flexibility, ensuring a clean installation.

Billet Compressor Wheel
Experience the advantages of our newly designed Billet Compressor Wheel. Unlike traditional cast wheels, this component is machined from aerospace-grade materials for exceptional durability and a lightweight profile. The thinner blades and larger surface area significantly improve airflow and turbo spool, translating to quicker throttle response and better overall performance.

Fitment
Nissan 240SX 1989-1994
Nissan 240SX 1993-1998

Technical Specs
Model: Nissan KA24DE
Target HP: 40 HP
Bearing Type: Ball Bearing
Initial Boost Setting: 1 kgf/cm2
Compressor Wheel:
IND (mm): 52
EXD (mm): 68
Trim: 6
Blades: 6
Material: A261
Production: CNC Billet
Turbine Wheel:
EXD (mm): 54
IND (mm): 61
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
IND (mm): 53
EXD (mm): 38.7
A/R: 0.62
Turbine Housing:
IND (mm): T2
EXD (mm): SR20DE
A/R: 0.57
