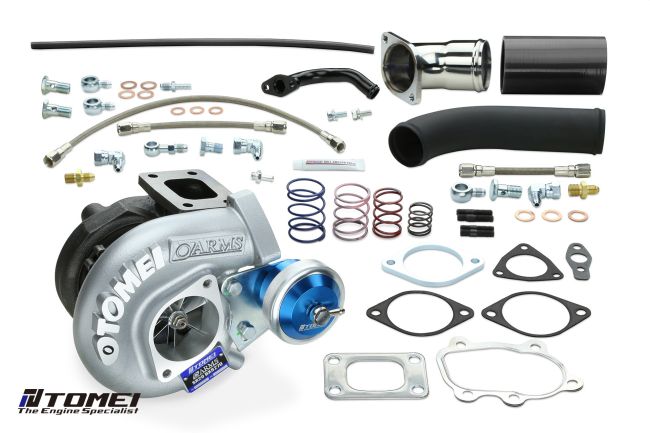

Tomei Nissan Silvia S13, S14 & S15 (88-02) SR20DET Ball Bearing BX8270 Turbocharger Kit with Billet Actuator

Upgrade your Nissan SR20DET's performance with the Multi Range Billet Actuator and Billet Compressor Wheel. Designed specifically for the 1988-2002 Nissan Silvia and 180SX models, this actuator features a robust forged billet construction that can handle the demands of high-performance applications. With six interchangeable springs, you can fine-tune your boost levels for optimal performance, while the swivel-type nipple allows for flexible hose routing, simplifying installation and maintenance.

Billet Compressor Wheel
Experience a significant boost in airflow with the newly designed Billet Compressor Wheel. Crafted from aerospace-grade materials, this lightweight component boasts thinner blades and a larger surface area, ensuring quicker turbo spool and enhanced performance compared to traditional cast wheels.

Fitment
Nissan Silvia 13 (1988-1994)
Nissan Silvia 14 (1995-1998)
Nissan Silvia 15 (1999-2002)
Nissan 180SX (1989-1999)
Nissan 240SX (1989-1998)

Technical Specs
Model: Nissan SR20DET
Target HP: 45
Bearing Type: Ball Bearing
Initial Boost Setting: 1 kgf/cm
Compressor Wheel:
IND: 59 mm
EXD: 76 mm
Trim: 6
Blades: 6
Material: A261
Production: CNC Billet
Turbine Wheel:
EXD: 58 mm
IND: 67 mm
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
IND: 60 mm
EXD: 38 mm
A/R: 0.62
Turbine Housing:
IND: T2
EXD: SR20DE
A/R: 0.57
