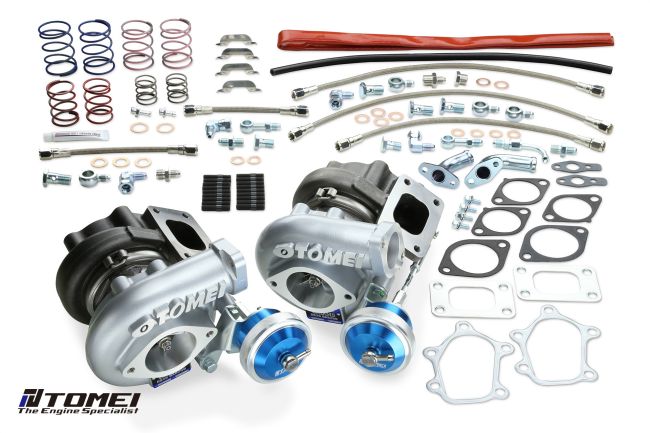

Tomei Nissan Skyline R32 GT-R, R33 GT-R & R34 GT-R (89-02) RB26DETT BX8260 Ball Bearing Turbocharger Kit with Billet Actuator Arms

If you're looking to enhance the performance of your Nissan RB26DETT, the Tomei TB403A-NS05B is a top-tier choice. This high-quality multi-range billet actuator and compressor wheel combo is designed for serious enthusiasts who want to maximize their turbo setup's efficiency and responsiveness.

Multi Range Billet Actuator
The TB403A-NS05B features a robust, large-capacity multi-rate billet actuator crafted from reinforced forged billet material. It includes a total of six springs, allowing you to fine-tune your boost settings with precision. With the option to combine up to three springs, you can easily customize your setup for optimal performance. Plus, the swivel-type nipple provides flexibility in routing hoses, making installation straightforward and hassle-free.

Billet Compressor Wheel
Say goodbye to the limitations of traditional cast compressor wheels. The newly designed billet compressor wheel is machined from aerospace-grade materials, ensuring durability and lightweight performance. The thinner blades and larger surface area significantly improve airflow, resulting in quicker turbo spool times and enhanced overall efficiency.

Specifications
Model: Nissan RB26DETT
Target HP: 65
Bearing Type: Ball Bearing
Initial Boost Setting: 1 kgf/cm
Compressor Wheel:
IND (mm): 52
EXD (mm): 68
Trim: 6
Blades: 6
Material: A261
Production: CNC Billet
Turbine Wheel:
EXD (mm): 58
IND (mm): 67
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
IND (mm): 53
EXD (mm): 38.7
A/R: 0.74
Turbine Housing:
IND (mm): T2
EXD (mm): RB26DET
A/R: 0.73

Fitment
Nissan GT-R R32 (1989-1994)
Nissan GT-R R33 (1993-1999)
Nissan GT-R R34 (1998-2002)

Upgrade your RB26DETT with the Tomei TB403A-NS05B and experience the difference in performance and reliability. Whether you're on the track or the street, this actuator and compressor wheel combo is engineered to deliver the best results.
