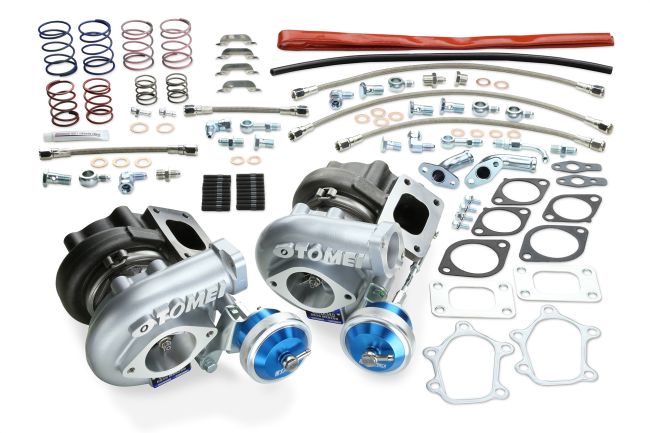

Tomei Nissan Skyline R32 GT-R, R33 GT-R & R34 GT-R (89-02) RB26DETT MX7655 Journal Bearing Turbocharger Kit with Billet Wheel with Multi Rate Actuator

f you're looking to elevate your RB26DETT's performance, the Tomei Arms Mx7655 Turbocharger is a must-have upgrade. This turbocharger is not just another bolt-on; its engineered specifically for the Nissan RB26 powertrain, capable of delivering up to 580HP. With this turbo, youll experience a significant boost in mid-range power while still being able to push higher in the RPM band when you need it.

Key Features
Billet Compressor Wheel: Crafted from aerospace-grade materials, the new lightweight design features thinner blades and a larger surface area, drastically improving airflow and reducing turbo lag.
Multi-Rate Billet Actuator: This actuator boasts a robust forged construction and includes six springs for precise boost adjustments. You can combine up to three springs to fine-tune your setup, ensuring your turbo performs optimally.

Specifications
Model: Nissan RB26DETT
Compressor Wheel:
Inducer Diameter (mm): 50
Exducer Diameter (mm): 68
Trim: 5
Material: A261
Production: CNC Billet
Turbine Wheel:
Exducer Diameter (mm): 47
Inducer Diameter (mm): 56
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
Inducer Diameter (mm): 51
Exducer Diameter (mm): 38.7
A/R: 0.74
Turbine Housing:
Inducer: T2
Exducer: RB26DET
A/R: 0.73
Initial Boost Setting: 1.0 kgf/cm

Fitment
Nissan GT-R R32 (1989-1994)
Nissan GT-R R33 (1993-1999)
Nissan GT-R R34 (1998-2002)
