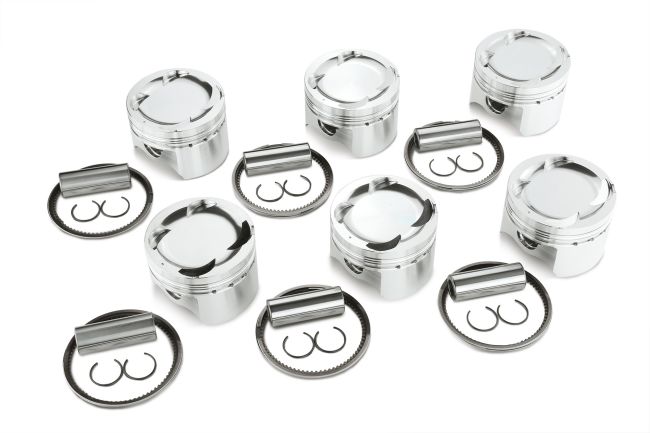

Tomei Toyota Supra (93-02) 2JZ-GTE Forged CP Piston Set - 86.50mm / CH34.00 (STD)

If you're looking to push the limits of your Toyota Supra (1993-2002) with the legendary 2JZ-GTE engine, the Tomei TA202A-TY03F forged pistons are a must-have upgrade. These pistons are crafted to handle the extreme pressures of a tuned engine while ensuring optimal performance and durability.

Why Choose Tomei Forged Pistons?
The TA202A-TY03F pistons are designed with automotive enthusiasts in mind, focusing on strength and lightweight performance. Heres what sets them apart:

High-Rigidity Forged Design: Unlike the casting method used in commercial vehicles, these pistons are made using a high-strength forging process. This method not only enhances durability but also allows for weight reduction through thinner walls, making them ideal for high-performance applications.
Custom Forging Material: Each piston is crafted from exclusive forged material, minimizing excess material and preventing unnecessary machining that could compromise strength.
3D Profile Engineering: The pistons feature an oval barrel shape designed for smooth movement and optimal clearance, ensuring that they perform flawlessly even under high temperatures.
Compatibility with Oversized Valves: The piston recess is engineered to accommodate 1mm oversized valves, giving you the flexibility to enhance airflow and performance.
Thin Piston Rings: Designed for reduced friction, these pistons come with thinner rings, which help minimize power loss for a more responsive engine.
All-Inclusive Package: Each set includes pins, clips, and rings specifically designed for the 2JZ-GTE, ensuring a hassle-free installation.

Technical Specifications
Application: 2JZ-GTE
Bore: 86.50 mm (OEM +1.0)
Pin Diameter: 22.0 mm
Pin Length: 60.0 mm
Circlip Inner Diameter: 22.0 mm
Compression Height: 34.00 mm (OEM 0.0)
Piston Volume: -14.6 cc
Piston Weight: 361.5 g
Pin Weight: 121.5 g
Total Weight: 483.0 g
Top Ring Size: 1.20 x 3.05 mm
Second Ring Size: 1.20 x 3.90 mm
Oil Ring Size: 2.50 x 2.95 mm
Piston Material: A4032

Fitment
Toyota Supra 80 (1993-2002)
