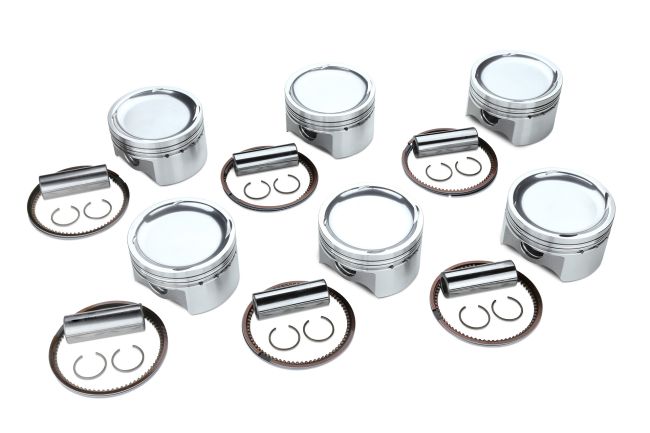

Tomei Toyota Supra (93-02) 2JZ-GTE Forged Piston Set - 86.50mm / CH29.50 (3.6)

Introducing the Tomei TA202A-TY03E Forged Piston Set, an exemplary component designed specifically for the Toyota 2JZ-GTE engine. This piston is not merely a part; it is the very heart of your performance build, transforming the energy of combustion into the exhilarating power that propels your vehicle forward. Crafted with the utmost precision, this piston is engineered to withstand the extreme pressures of a tuned engine, ensuring reliability and performance in every rev.

Design & Engineering
At the core of the TA202A-TY03E's design is a lightweight yet high-rigidity forged construction. Tomei employs a high-strength forging method, diverging from the conventional casting techniques prevalent in commercial applications. This advanced manufacturing process allows for an optimal balance of strength and weight, achieved by utilizing thinner wall profiles that do not compromise integrity.

Each piston is forged from exclusive materials tailored specifically for this application, minimizing excess material and eliminating unnecessary machining that could weaken the structure. The result is a component that not only meets but exceeds the rigorous demands of high-performance environments.

Technical Specifications
Application: Toyota 2JZ-GTE
Bore: 86.50 mm (OEM +0.5)
Pin Diameter: 22.0 mm
Pin Length: 60.0 mm
Circlip Inner Diameter: 22.0 mm
Valve Recess: Compatible with 1mm oversized valves
Compression Height: 29.50 mm (OEM -4.5)
Piston Volume: -22.6 cc
Piston Weight: 271.6 g
Pin Weight: 121.5 g
Total Weight: 393.1 g
Top Ring: 1.20 x 3.05 mm
Second Ring: 1.20 x 3.90 mm
Oil Ring: 2.50 x 2.95 mm
Piston Material: A4032 Aluminium Alloy

Performance Benefits
The TA202A-TY03E features an innovative 3D profile designed for optimal piston movement, with a calculated oval barrel shape that ensures smooth operation and precise clearance. The engineering team at Tomei has meticulously accounted for thermal expansion, guaranteeing performance consistency even under extreme conditions.

Additionally, the design incorporates thinner piston rings, effectively reducing friction loss and enhancing overall efficiency. Each set comes complete with precision-engineered pins, clips, and rings, ensuring a seamless installation and optimal performance tailored to your specific model.

Fitment
Compatibility: Toyota Supra (1993-2002)
