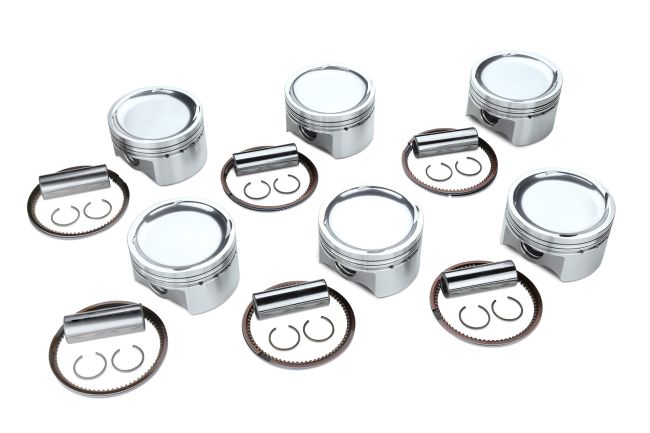

Tomei Toyota Supra (93-02) 2JZ-GTE Forged Piston Set - 86.50mm / CH30.00 (3.4)

If you're looking to boost performance in your 1993-2002 Toyota Supra, the Tomei TA202A-TY03D forged piston is a game changer. Designed specifically for the iconic 2JZ-GTE engine, this piston is engineered to handle the high combustion pressures that come with tuning and performance upgrades.

Why Choose the TA202A-TY03D?
This isn't just any piston; it's a lightweight, high-rigidity forged component that outperforms standard cast pistons commonly found in commercial vehicles. The high-strength forging method used in its production allows for thinner walls without sacrificing durability, making it ideal for high-performance applications.

Key Features
Application: Toyota 2JZ-GTE
Bore: 86.50 mm (OEM +0.5)
Pin Diameter: 22.0 mm
Pin Length: 60.0 mm
Valve Recess: Compatible with 1mm oversized valves
Compression Height: 30.00 mm (OEM -4.0)
Piston Volume: -17.5 cc
Piston Weight: 292.9 g
Pin Weight: 121.5 g
Total Weight: 414.4 g
Top Ring: 1.20 x 3.05 mm
Second Ring: 1.20 x 3.90 mm
Oil Ring: 2.50 x 2.95 mm
Piston Material: A4032

Technical Specifications
Engine: Toyota 2JZ-GTE
Block Related: Yes

Fitment
Toyota Supra 1993-2002
